Comprehensive assembly guides are available for all Polybar controller configurations, featuring an interactive chapter system for easy navigation.

Each guide includes:

• Visual component lists outlining required and optional build parts.
• Step-by-step schematic instructions with clear assembly diagrams and expert tips.
• DIY PCB support, featuring component assignment visuals and soldered examples to streamline the process.

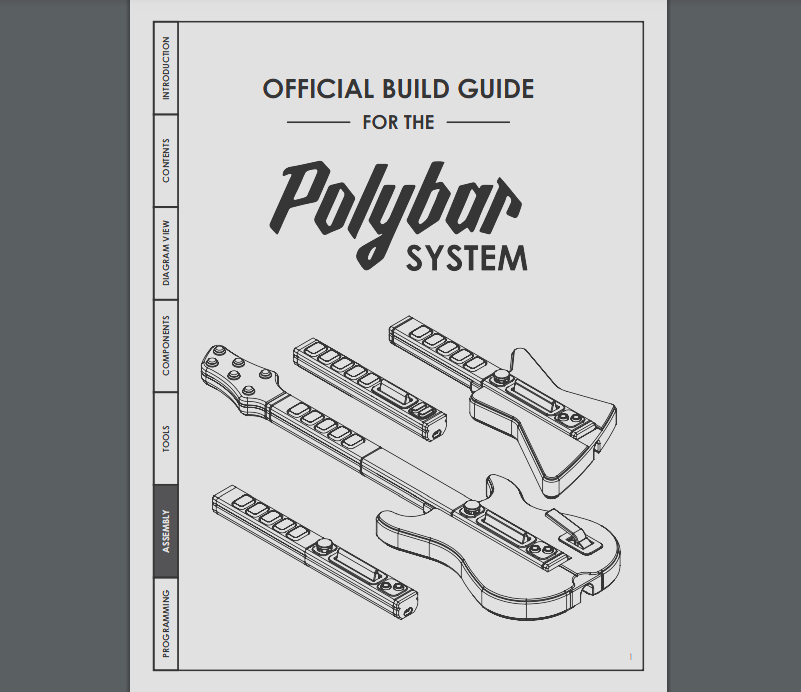

Polybar System Build Guide
Polybar System Handwired Build Guide

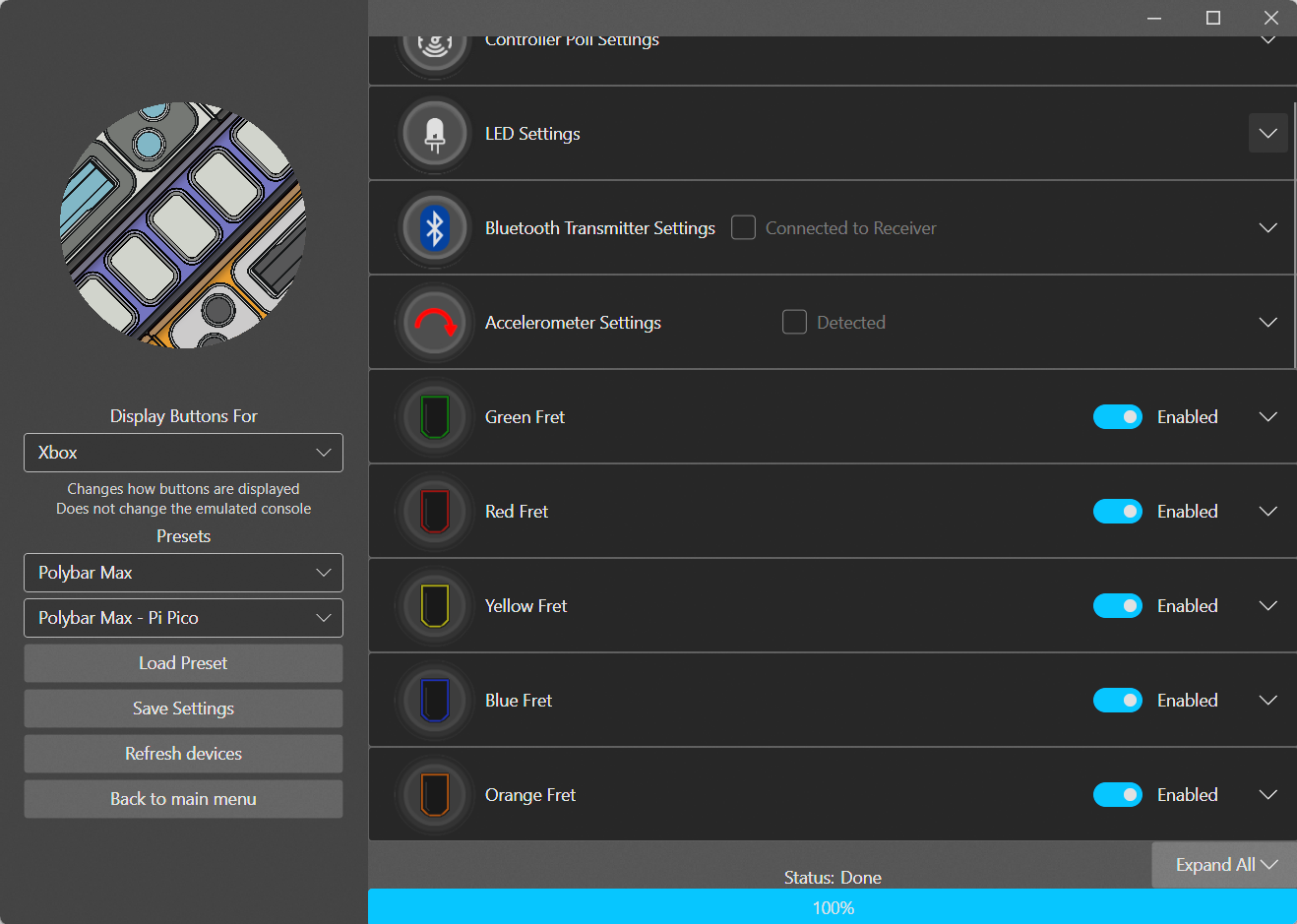

Some controllers feature two tilt options and two whammy options. If you only see one type of option, your controller supports a single configuration.

• The top tilt option corresponds to ball tilt switches, while the bottom tilt option is for accelerometers.
• The top whammy option is for joystick-based whammy, and the bottom whammy option is for hall sensor whammy.

This applies to all Polybar Micro, Mini, and Max controllers, though specific models and boards may have slight variations.

Need assistance configuring your controller? Reach out to us on Discord
