Solderless Kit - Polybar Mini/Max

Solderless Kit - Polybar Mini/Max

Connection type
$115.00 NZD
$115.00 NZD
Sale Sold out

The Electronics You Need to Build Your Polybar Controller—No Soldering Required!

📢 Important: This is not a complete controller. It includes only the internal electronic components for a Polybar Mini/Max build. You’ll need to print or purchase the outer parts separately.

This kit includes all the pre-assembled electrical components needed to build your Polybar Mini/Max controller. Just connect everything and start assembling—no soldering required!

If you decide to skip Bluetooth/Wireless parts at checkout, no worries—you can always grab them later and upgrade your setup anytime.

🔹 Compatible with: Guitar Hero, Clone Hero, YARG, Rock Band, Fortnite Festival & more

CONTENTS:

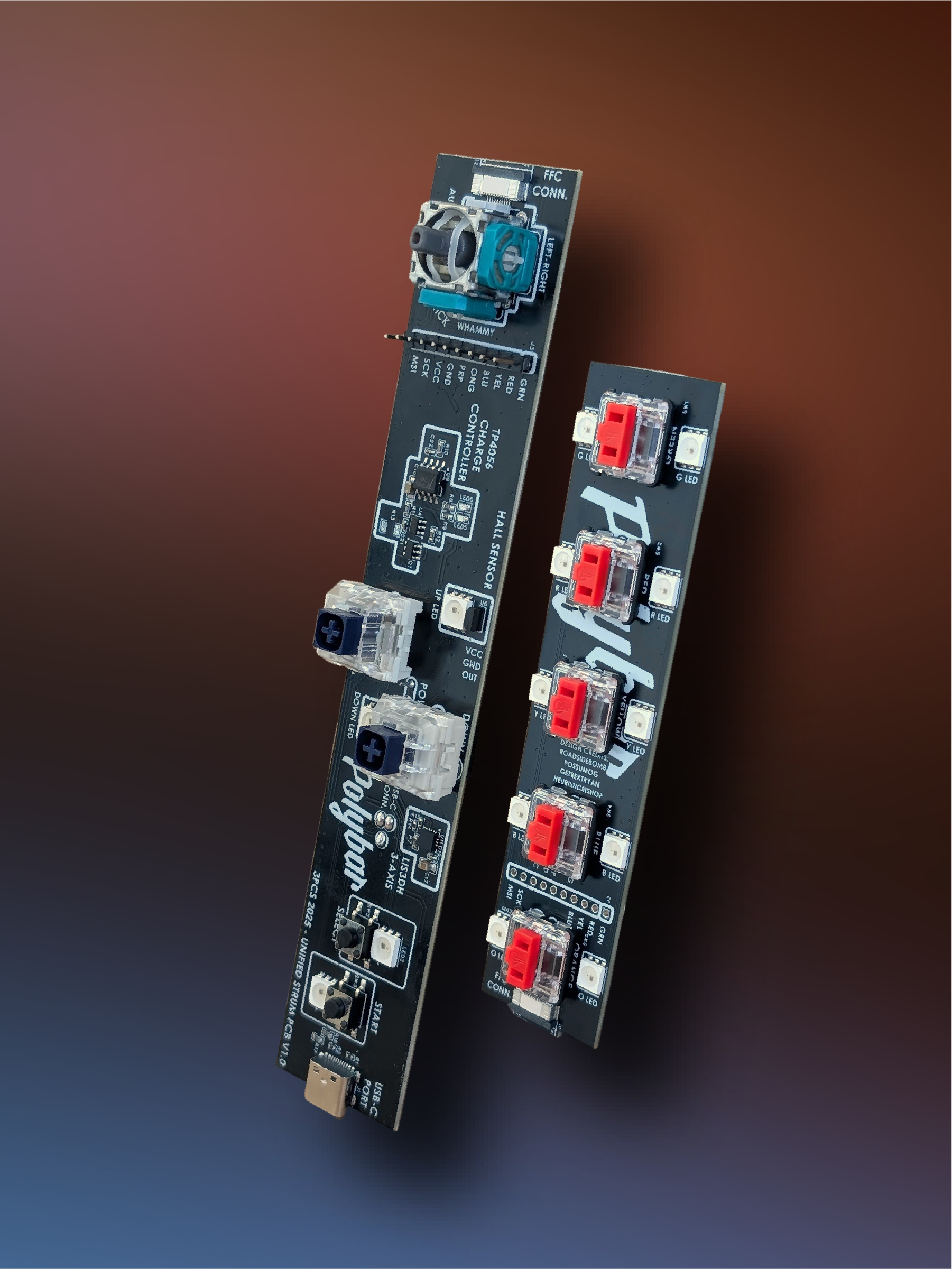

1 x Assembled mini/max fret pcb & components
1 x Assembled mini/max strum pcb & components
1 x 200mm ribbon connecting cable
1 x Whammy Magnet
1 x 1000mah lithium battery*

*Only available if ordered as the wireless option

🎸  Assemble, and get ready to rock!

💬 Need help? Check out the Guides & Config page or Join our Discord community for build tips, troubleshooting, and inspiration

Features

Kailh Choc premium mechanical fret switches
Kailh Box Navy mechanical strum switches
Hall sensor whammy input
Accelerometer for accurate tilt activations
Microswitch start and select buttons
14 addressable RGB LEDs
1000mAh rechargeable battery for loads of play time*

Customizable easy to use firmware package

*Only available if ordered as the wireless option

Return Policy & Disclaimer

RETURN POLICY:
ALL SALES ARE FINAL, PARTS KITS ARE NON-RETURNABLE AND NON-REFUNDABLE. IF THERE IS AN ISSUE WITH YOUR ORDER, PLEASE CONTACT US HERE OR VIA DISCORD.

DISCLAIMER:
THE ELECTRONICS INCLUDED IN THE KIT MAY BE SENSITIVE TO MOISTURE, HEAT, SHOCK, OR STATIC ELECTRICITY. AVOID EXPOSING THE COMPONENTS IN THIS KIT TO THESE ELEMENTS.

DUE TO THE NATURE AND CHARACTERISTICS OF LITHIUM-ION BATTERIES, WE ARE NOT RESPONSIBLE OR LIABLE FOR ANY DAMAGES, MALFUNCTION, INJURIES, FIRE, OR ANY OTHER CONSEQUENCES OR RESULTS THAT MAY OCCUR FROM THE CORRECT OR INCORRECT USE OF THESE COMPONENTS AND/OR BATTERIES.

BY PURCHASING THIS KIT, YOU AGREE TO THE POLICIES AND DISCLAIMERS LISTED HERE

Firmware & Build Guide

Check out the Guides & Config page or our Discord server for the most up to date information

View full details

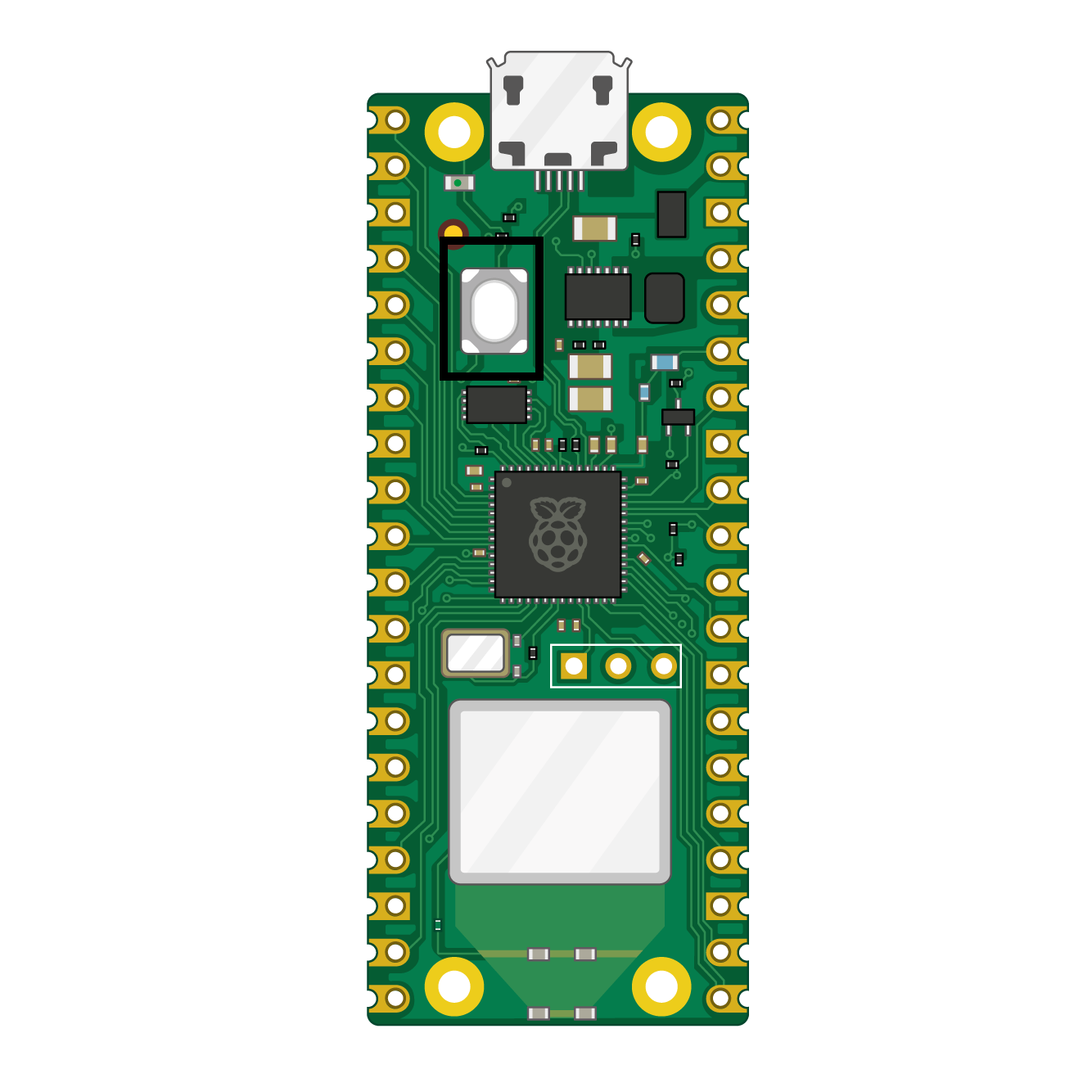

Pi Pico & Pico W

Enhanced Performance & Santroller Support
Upgrading from the KB2040 to the Pico & Pico W enables wireless connectivity, expands GPIO flexibility, this has allowed us to implement more features as well as ensure Santroller firmware support for the foreseeable future

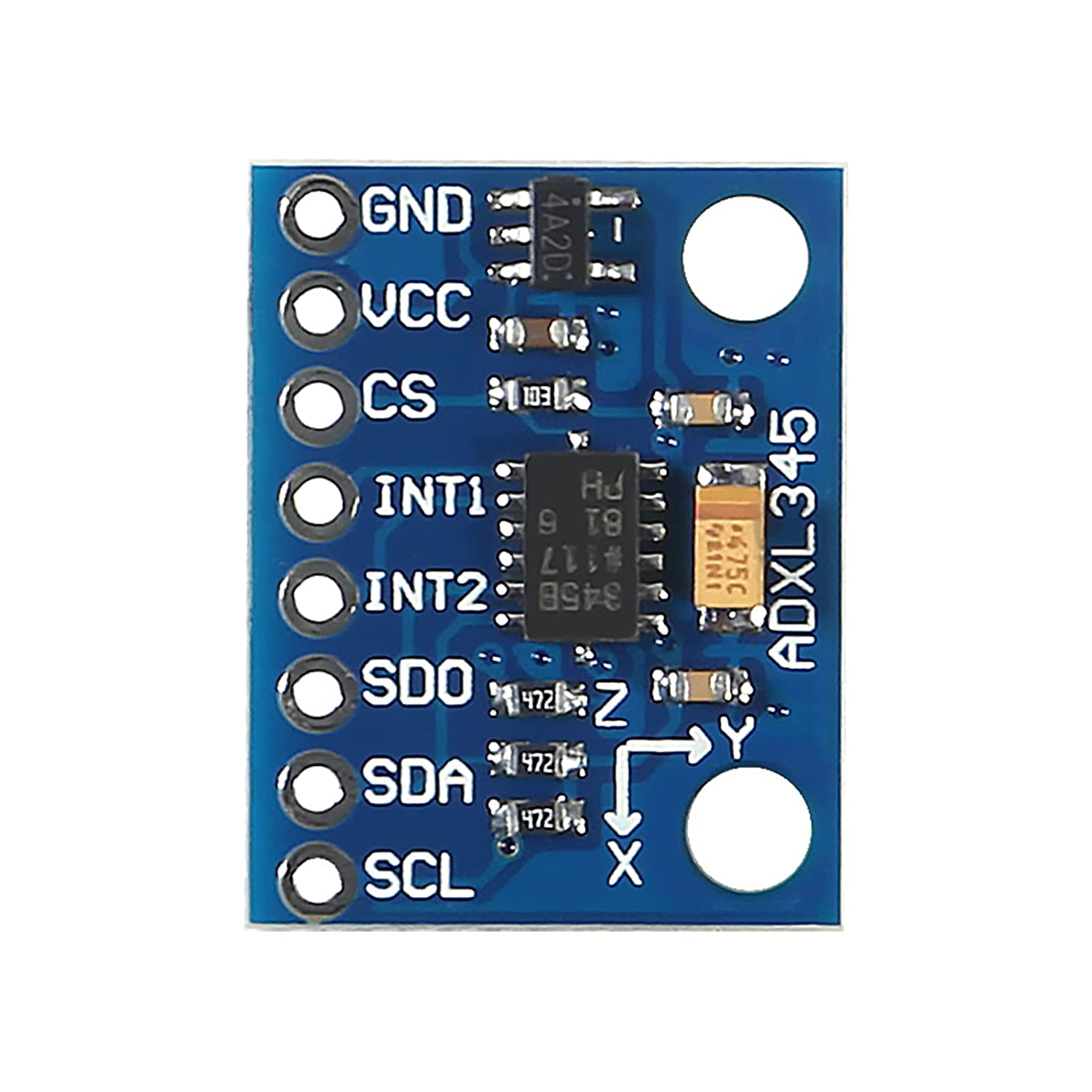

Accelerometer Support

Advanced Motion Sensing for Controllers
The ADXL345 accelerometer adds high-resolution motion tracking, enabling more precise inputs. Benefits include:

  • Accurate tilt/motion detection, ideal for advanced gameplay.
  • Ultra-low power consumption, making it perfect for battery-based setups.
  • Interrupt-based functionality, providing responsive control mechanics.

Charging Module

Reliable Battery Management & Protection
Integrating the TP4056 ensures safe, efficient lithium-ion charging with features like:

  • Overcharge protection, safeguarding battery lifespan.
  • Thermal regulation, optimizing charging conditions.
  • Low standby current, preventing unnecessary power drain.
